- 產品名稱:電磁閥
- 產品型號:4M系列
- 所屬類別:>>電磁閥
- 品牌:上海儀川儀表廠(上海儀川儀表廠)
- 銷售單位:上海儀川儀表銷售有限公司
圖形符號 Graphic symbol 標準規格 Standard specification 型號 Model 4M210-06 4M220-06 4M210-08 4M220-08 4M310-08 4M320-08 4M310-10 4M320-10 工作介質 Working-Medium 空氣(40米濾綱過濾) Air(40 micron cleaned) 動作方式 M
詳細介紹

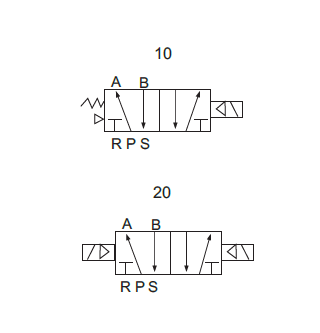

圖形符號 Graphic symbol
標準規格 Standard specification
型號說明 Model expressing methods
流量特性 Flow characteristic
請參考相應規格的4V系列電磁閥
Please refer to the 4V series solenoid valve of corresponding specification
外形尺寸圖(mm) Outline dimension drawing
單頭雙位置 One-head two-position
雙頭雙位置 two-head two-position
標準規格 Standard specification
| 型號 Model |
4M210-06 4M220-06 |
4M210-08 4M220-08 |
4M310-08 4M320-08 |
4M310-10 4M320-10 |
|||
| 工作介質 Working-Medium | 空氣(40米濾綱過濾) Air(40 micron cleaned) | ||||||
| 動作方式 Motion pattern | 內部先導式 Internal pilot | ||||||
| 位置數碼相機 Position number |
五口二位 Five-mouth two-position |
||||||
| 有效截面積 Efective sectional area(mm ) | 14mm2(Cv=0.78) | 16mm2(Cv=0.89) | 25mm2(Cv=1.39) | 30mm2(Cv=1.67) | |||
| 接管口徑 Adapter's caliber |
進氣=排氣=PT1/8 air-in=exhausting=PT1/8 |
進氣=PT1/4排氣=PT1/8 air-in=PT1/4exhausting=PT1/8 |
進氣=排氣=PT1/4 air-in=exhausting=PT1/4 |
進氣=PT3/8排氣=PT1/4 air-in=PT3/8exhausting=PT1/4 |
|||
| 潤滑 Lubrication | 不需要No required | ||||||
| 使用壓力 Working-pressure | 1.5~8.0kgf/cm2 | ||||||
| 最大耐壓力 Biggest withstanding pressure | 12kgf/cm2 | ||||||
| 工作溫度 Ambient temperature | -5~60℃(23~140°F) | ||||||
| 電壓變動范圍 Voltage range | -15%~±10% | ||||||
| 耗電量 Power consumption | AC:380V:2.5VA; AC220V:2.0VA; AC110V:2.5VA; AC24V:3.5VA; DC24V:3.0W; DC12V:2.5W | ||||||
| 絕緣性 Isulation | F級 Class F | ||||||
| 保護等級 Protection class | IP65(DIN40050) | ||||||
| 接電型式 Electrifying model | 直接出線式或端子式 Lead or Box type | ||||||
| 最高動作頻率 Highest action frequency | 每秒三次 3/Sec | ||||||
| 最短勵磁時間 Response time | 0.05秒(S) | ||||||
型號說明 Model expressing methods
流量特性 Flow characteristic
請參考相應規格的4V系列電磁閥
Please refer to the 4V series solenoid valve of corresponding specification

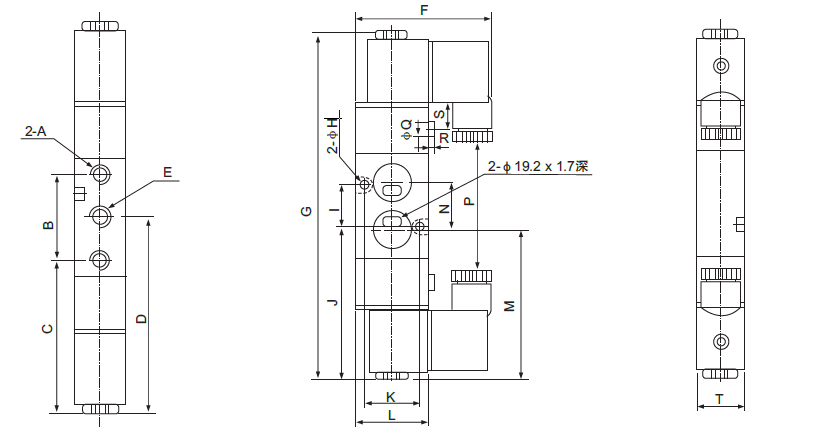

外形尺寸圖(mm) Outline dimension drawing
單頭雙位置 One-head two-position
雙頭雙位置 two-head two-position
