- 產品編號:SYCIF-1658186186
- 產品名稱:ASC系列
- 產品型號:單向閥
- 所屬類別:>>電磁閥
- 品牌:上海儀川儀表廠(上海儀川儀表廠)
- 銷售單位:上海儀川儀表銷售有限公司
通 用 范圍 General use range 單向型流量控制閥，在氣路中調節氣體的流量，氣流正向流動時節流，反向流動時不節流，以改變氣缸等執行元件的單向運動速度。 The one-way flow control valve i
詳細介紹
通用范圍 General use range
單向型流量控制閥，在氣路中調節氣體的流量，氣流正向流動時節流，反向流動時不節流，以改變氣缸等執行元件的單向運動速度。
The one-way flow control valve is used for regulating air flow in gas-line, it conducts throtting function when air-flow flows in forward direction,
the throtting function doesn＇t work when reversal flowing, which changes the one-way motion speed of cylinder and other execution component
etc.

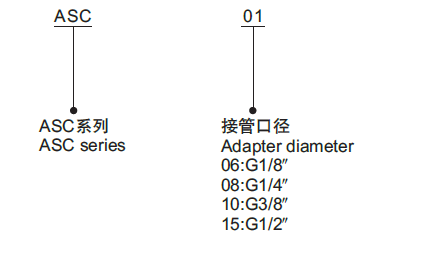

型號說明 Model expressing methods

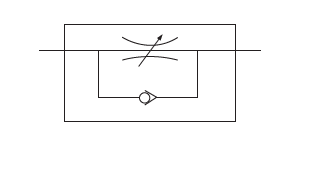

圖形符號 Graphic symbol
標準規格 Standard specification
外形尺寸圖(mm) Outline dimension drawing
單向型流量控制閥，在氣路中調節氣體的流量，氣流正向流動時節流，反向流動時不節流，以改變氣缸等執行元件的單向運動速度。
The one-way flow control valve is used for regulating air flow in gas-line, it conducts throtting function when air-flow flows in forward direction,
the throtting function doesn＇t work when reversal flowing, which changes the one-way motion speed of cylinder and other execution component
etc.
型號說明 Model expressing methods
圖形符號 Graphic symbol
標準規格 Standard specification
|
規格/項目 Specification/Item |
接管螺紋 Adapter thread |
使用流體 Ude fluid |
開啟壓力 Open pressure |
壓力范圍 Pressure scope |
使用溫度 Environment temp |
|
|
精密型 Precise |
ASC-06 | G1/8 |
壓縮空氣 Compressed air |
0.03MPa | 0.05~1.2MPa | -5~99℃ |
| ASC-08 | G1/4 | |||||
| ASC-10 | G3/8 | |||||
| ASC-15 | G1/2 | |||||

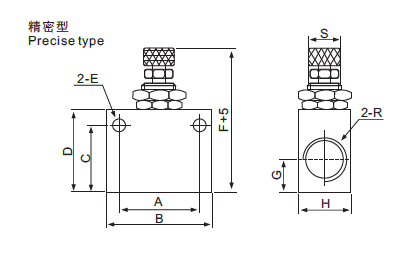

外形尺寸圖(mm) Outline dimension drawing
| 型號 Model | ASC-06 | ASC-08 | ASC-10 | ASC-15 |
| A | 20 | 20 | 38 | 38 |
| B | 35 | 35 | 50 | 50 |
| C | 21 | 21 | 32 | 32 |
| D | 26 | 26 | 40 | 40 |
| E | φ4.5 | φ4.5 | φ5.5 | φ5.5 |
| F | 50 | 50 | 68 | 68 |
| G | 10 | 10 | 16 | 16 |
| H | 16 | 19 | 25 | 25 |
| R | G1/8 | G1/4 | G3/8 | G1/2 |
| S | M12 | M12 | M16 | M16 |
